◆ 您现在的位置：首页 >> 产品展示>>金属软管接头，尼龙管接头

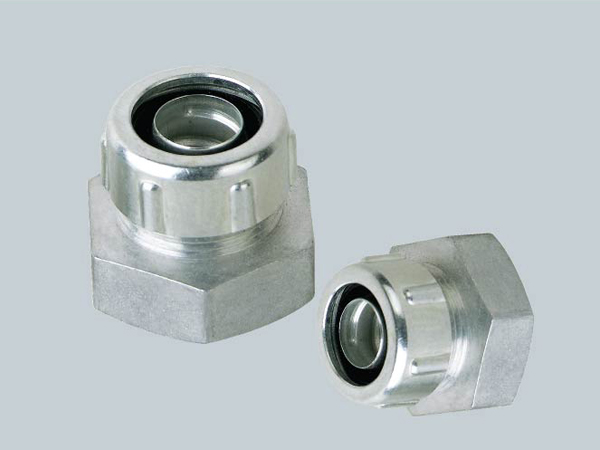

| 包塑金属软管端接式变型管接头 WD96-5 |
| 接口规格d |
包塑金属软管 |
d0 |
I |
≈L |
S(h12) |
D |
单价 |
| 内径d内 |
外径Dmax |
| A型 |
M16×1 |
10 |
14.6 |
9 |
8 |
30 |
22 |
25.4 |
|
| M20×1 |
10 |
14.6 |
9 |
8 |
30 |
22 |
25.4 |
|
| G1/2" |
10 |
14.6 |
9 |
|
|
22 |
25.4 |
|
| B型 |
M16×0.75左 |
10 |
14.6 |
9 |
7 |
27 |
22 |
25.4 |
|
| M24×1左 |
15 |
20.35 |
14 |
8 |
28.5 |
30 |
34.6 |
|
| M22×1.5 |
10 |
14.6 |
9 |
10 |
30 |
27 |
31.1 |
|
| M22×1.5 |
12 |
16.65 |
11 |
10 |
30 |
27 |
31.1 |
|
| M30×1.5 |
12 |
16.65 |
11 |
12 |
32 |
36 |
41.6 |
|
| M30×1.5 |
15 |
20.35 |
14 |
12 |
33.5 |
36 |
41.6 |
|
| M30×1.5 |
20 |
25.7 |
19 |
12 |
34 |
36 |
41.6 |
|
| M36×1.5 |
20 |
25.7 |
19 |
12 |
35 |
41 |
￠44.4 |
|
| M36×1左 |
25 |
31.95 |
24 |
35 |
64 |
46 |
￠49.8 |
|
| M42×1.5 |
25 |
31.95 |
24 |
12 |
38 |
50 |
￠54.1 |
|
| M52×1.5 |
32 |
39.7 |
30.8 |
14 |
45 |
60 |
￠64.9 |
|
| M56×1.5 |
38 |
47 |
36.8 |
14 |
45 |
65 |
￠70.3 |
|
B型：d=M30×1.5 d内=15
标记：B-M30×1.5/15 WD96-5 |
|
