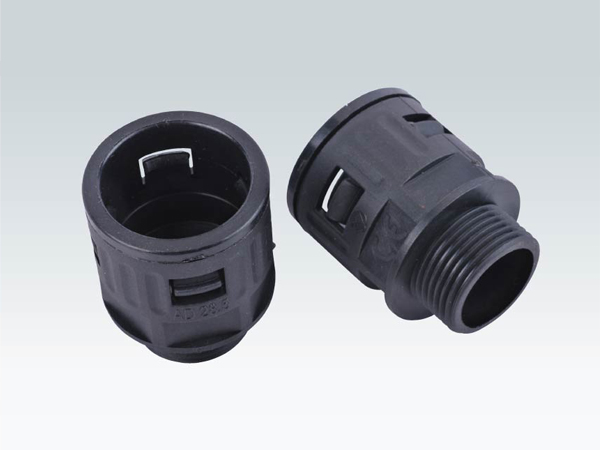

软管快速接头：
材料 Material：PA6
温度范围 Temperature range：-40℃-105℃
短时间可以达到 Max Temperature in the best tiem:150℃
防护等级 Protection grade:IP68
使用合适的密封圈 With suitable ring(FR/FRH) |
| 公制螺纹 Metric Thread |
| 适配软管AD |
螺纹规格 |
螺纹长度C |
孔径φI |
外径φB |
长度D |
扳手尺寸SW |
| AD13.0 |
M16×1.5 |
9.5 |
10 |
20.2 |
36 |
18 |
| AD15.8 |
M18×1.5 |
9.5 |
12 |
23.2 |
38 |
21 |
| AD18.5 |
M20×1.5 |
11 |
14.5 |
26.2 |
40 |
24 |
| AD21.2 |
M20×1.5 |
13 |
15.5 |
29.7 |
45 |
27 |
| AD21.2 |
M24×1.5 |
13 |
17 |
29.7 |
45 |
27 |
| AD28.5 |
M27×2.0 |
13 |
22.5 |
37.4 |
48 |
34 |
| AD28.5 |
M30×2.0 |
13 |
23.5 |
37.4 |
48 |
34 |
| AD28.5 |
M32×2.0 |
13 |
23.5 |
37.4 |
48 |
34 |
| AD34.5 |
M33×1.5 |
12 |
26 |
44 |
51 |
40 |
| AD34.5 |
M36×2.0 |
12 |
30 |
44 |
54 |
40 |
| AD42.5 |
M48×2.0 |
14 |
36.5 |
52 |
54 |
48 |
| AD54.5 |
M63×1.5 |
14.5 |
43 |
64 |
55 |
59 |
| PG制螺纹 PG Thread |
| 适配软管AD |
螺纹规格 |
螺纹长度C |
孔径φI |
外径φB |
长度D |
扳手尺寸SW |
| AD10.0 |
PG7 |
10 |
7 |
17 |
34.5 |
15 |
| AD13.0 |
PG9 |
9.5 |
10 |
20.2 |
36 |
18 |
| AD15.8 |
PG11 |
9.5 |
12 |
23.2 |
38 |
21 |
| AD18.5 |
PG13.5 |
11 |
14 |
26.2 |
40 |
24 |
| AD21.2 |
PG16 |
13 |
17 |
29.7 |
43.5 |
27 |
| AD28.5 |
PG21 |
13 |
23.5 |
37.4 |
48 |
34 |
| AD34.5 |
PG29 |
12 |
30 |
44 |
51 |
40 |
| AD42.5 |
PG36 |
14 |
36.5 |
52 |
54 |
48 |
| AD54.5 |
PG48 |
14.5 |
48 |
64 |
55 |
59 |
| G制螺纹 G Thread |
| 适配软管AD |
螺纹规格 |
螺纹长度C |
孔径φI |
外径φB |
长度D |
扳手尺寸SW |
| AD10.0 |
G1/4’’ |
10 |
7 |
17 |
34.5 |
15 |
| AD13.0 |
G3/8’’ |
9.5 |
10 |
20.2 |
36 |
18 |
| AD15.8 |
G3/8’’ |
9.5 |
12 |
23.2 |
38 |
21 |
| AD15.8 |
G1/2’’ |
11 |
12.5 |
26.2 |
40 |
24 |
| AD21.2 |
G1/2’’ |
13 |
15 |
29.7 |
43.5 |
27 |
| AD28.5 |
G3/4’’ |
13 |
20.5 |
37.4 |
48 |
34 |
| AD34.5 |
G1’’ |
12 |
25.5 |
44 |
51 |
40 |
| AD42.5 |
G11/14’’ |
14 |
35 |
52 |
54 |
49 |
| AD54.5 |
G11/2’’ |
14.5 |
39 |
64 |
55 |
59 |
| AD54.5 |
G2’’ |
14.5 |
48.5 |
64 |
55 |
50 |
|
