JYG-65 DGT DGT tube electric cable protection set
Construction & Application

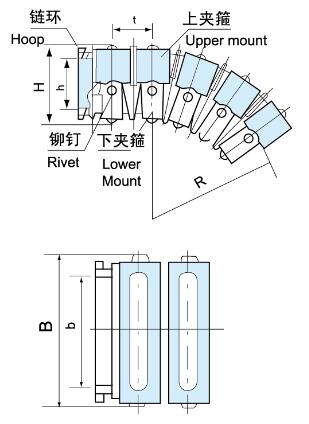

The cable drag channel consists of plastic hoop.upper and lower mounts.At the end of the cable drag channel is mounted with the coupler,one end of which is movable.It can been flexible constrution,Tao meet different istallation ways,there are A.B.C three types of couolers for users selection.Model DGT cable drag channels are not only used for cable leads,But alsp pulverized media in various of machine tools.It is also asaptable to other machineries
Specification 1= 2= 3= 4=
Data
h Intemal height 25 38 52 72
b Intemal width 45 73 102 162
t Pitch 20 20 25 30
R Bending radius （70）（105）（155） （105）（205）（255） （145）（230）（305） （190）（255）（355）
H Extemal height 39 -53 -70 -93
B Extemal width -62 -91 -122 -186
L Max.free lenght 1500 2000 2500 3000



订货规格与型号如下：
1.1#×1200 -A或25×45×1200 -A- 2.2#×1800 -AB或38×73×1800 -AB
Data e B3 B5 L1 L2 L3 d H3 H1 单位/米 单个/只
Specification
1" 22 55 50 30 8 22 2-￠6.5 35 24 120 12
2" 50 84 76 35 10 27 2-￠6.5 49 30 140 15
3" 65 115 110 40 11 30 2-￠8.5 65 40 160 28
4" 100 178 140 45 13 33 2-￠10.5 88 52 200 38



Data e H3 B1 L1 d t 单位/米 单个/只
Specification
1" 75 35 90 30 2-￠6.5 5 120 12
2" 105 49 120 35 2-￠6.5 6 140 15
3" 140 65 160 40 2-￠8.5 7 160 28
4" 200 88 226 45 2-￠10.5 8 200 38



Data ed eh B3 H4 L1 d t1 单位/米 单个/只
Specification
1" 18 55 55 71 30 4-￠6.5 5 120 8.5
2" 45 70 84 85 35 4-￠6.5 6 140 12.5
3" 60 90 115 110 40 4-￠8.5 7 160 28
4" 95 110 178 136 45 4-￠10.5 8 200 38
